Product Details
|
Brand |
Maidodo |
|
Item model |
MDD-QCBXS-Box |
|
Product Name |

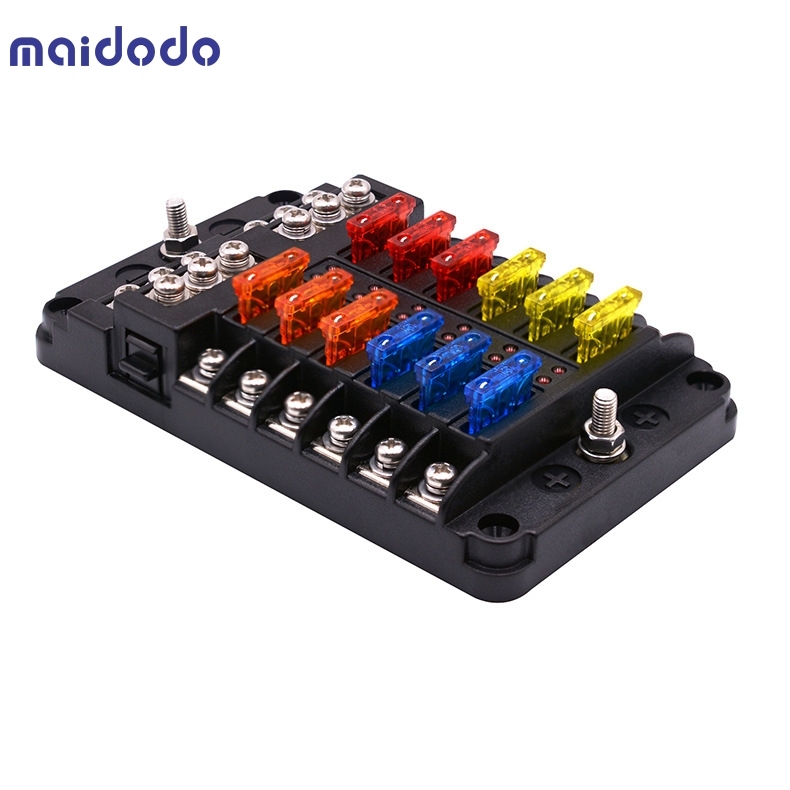

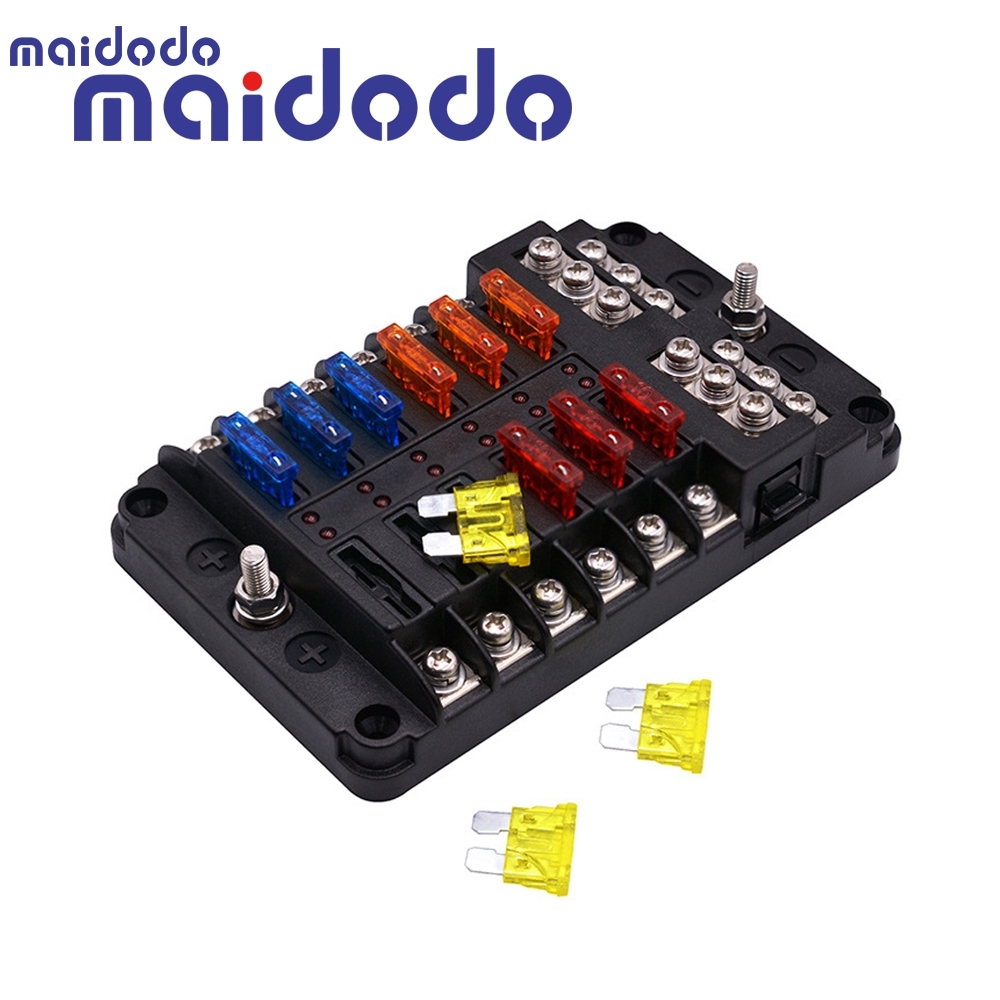

Independent positive and negative poles, one input and multiple output fuse box with LED indicator [12 in 12 out] |
|
Product Model |
CS-664A2 |
|
Product Net Weight |
279g |
|
Product gross weight |
285g |
|

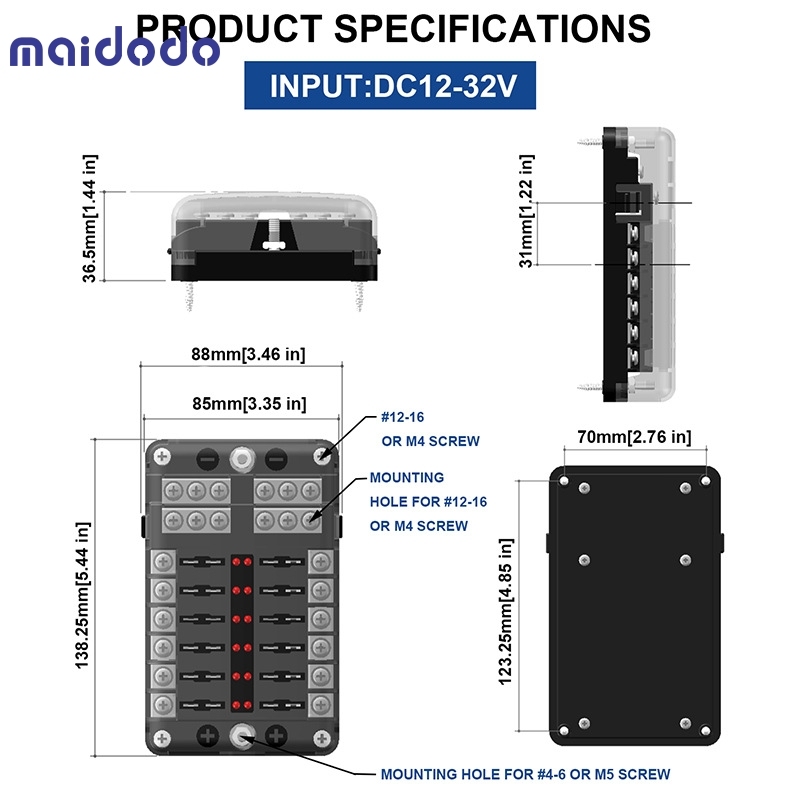

Product size |
138.25*85*36.5mm |
|
Product material |

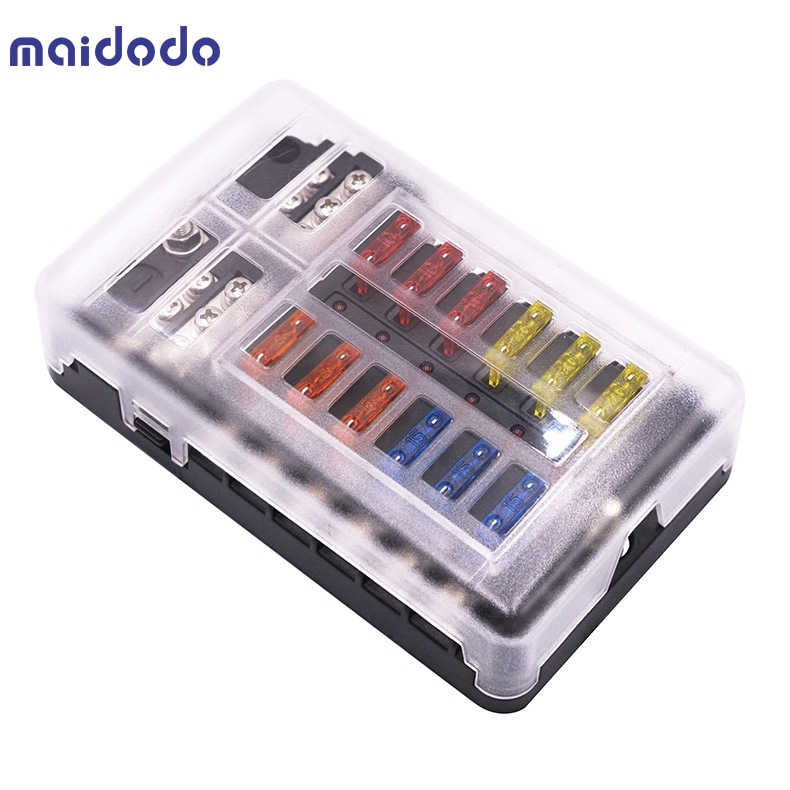

PBT body, PC waterproof and dustproof cover, nickel-plated copper connection terminal, PPX40 sticker |
|
Input rated voltage |
32V |
|
Input rated current |
100A |
|
Maximum output current |
30A per circuit |
|
Indicator color |
Red. |
|

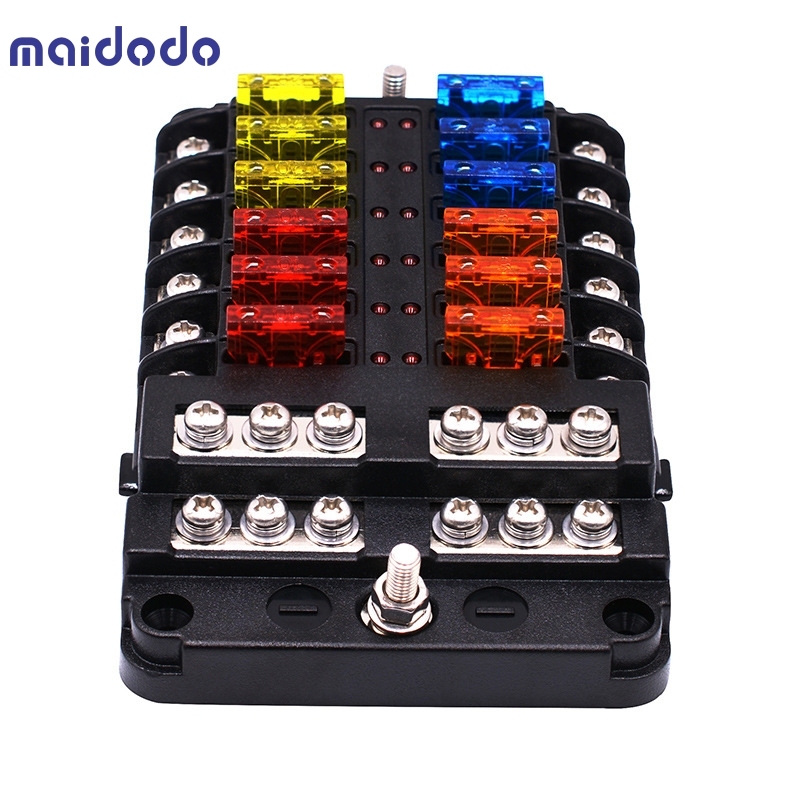

Main line terminal |
M5 threaded stud |
|
Main wire |
#4-6 |
|
Single wire terminal |
M4 threaded stud |
|
Indicator function |
When the red LED light is on, it means that the fuse has been disconnected, and the fuse needs to be replaced in time to continue operation |
|
Product installation range |
It can be installed on cars, RVs, RVs, buses, yachts, boats, etc. |
|
Product use range |

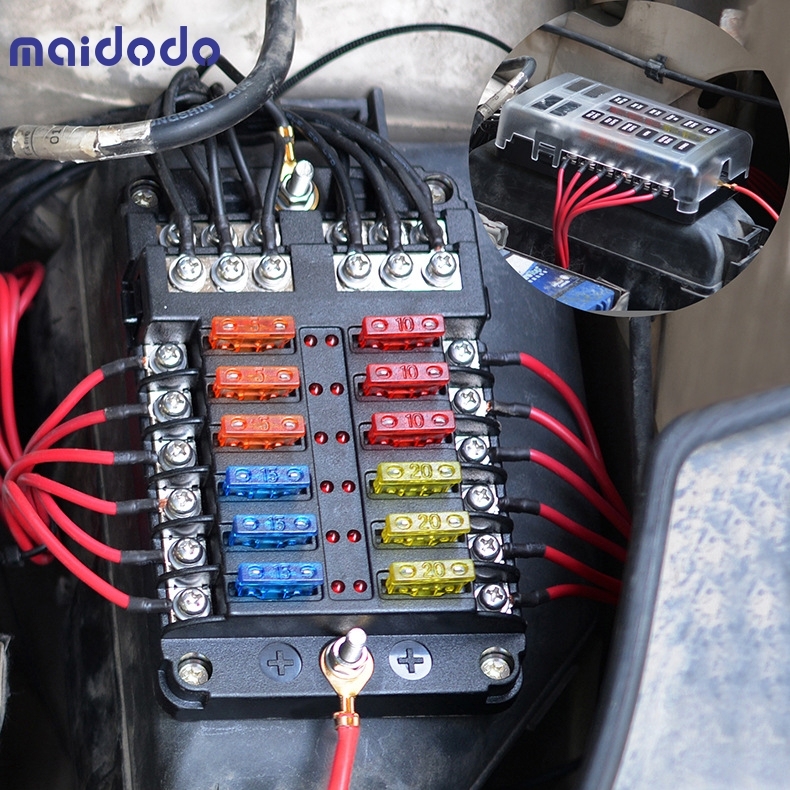

It can be directly connected to the line of any electrical appliances on the car/ship [such as: car roof lights, car headlights, viewing width lights, fog lights, warning lights, car refrigerators, car chargers, car fans, car TV etc. |
|
Product accessories |

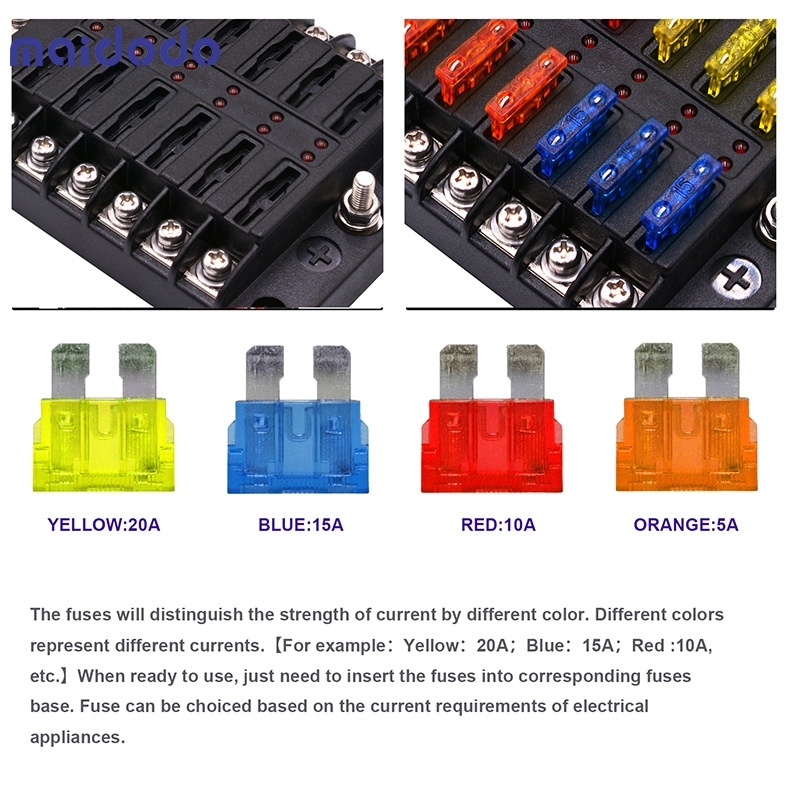

sticker X2; self-tapping screw X4; 20A fuse X6; 15A fuse X6; 10A fuse X6; 5A fuse X6 |
