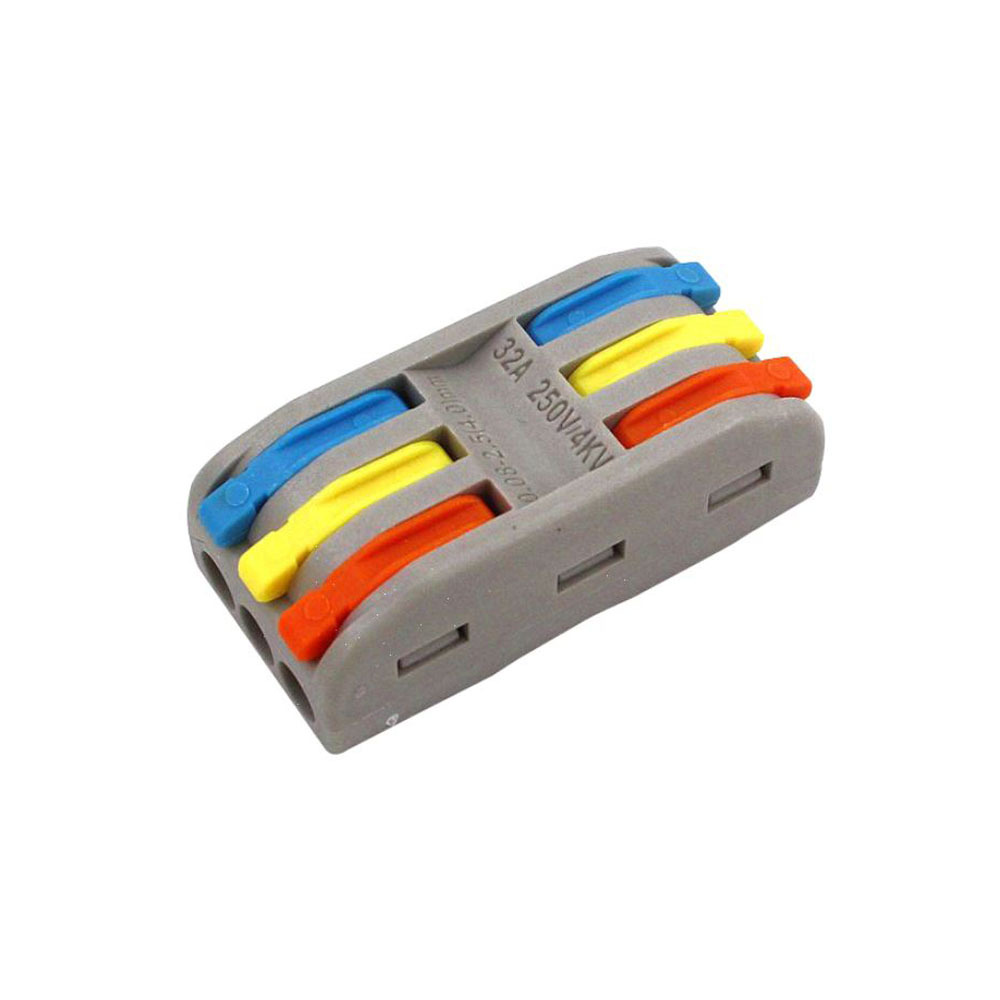

Wire Connector Color 222-413C Universal Compact Wiring Conductor Push-in Terminal Block LED Conector

SKU: CN-222-413C-50

0.0 (0 Reviews)

0 Sold

~~$25.00~~ $10.00

Received successfully

Coupon Code

Please select the information you wantX

1/1

Product Details

Brand	Maidodo
Item Model	MDD-222-413C
Product Name	Wire Connector
Model	PCT-213C
Model Number	222-413C
Rated Voltage	250V
Rated Impulse Voltage	4KV
Quantity	5PCS / 10PCS / 50PCS / 100PCS
Material of Insulation	Modified Nylon(PA66)
Contact Material	Phosphor Copper
Wire Cross section	0.08~2.5mm2(single hard wire), 0.08~4mm2(multi soft wire)
Color	Grey Orange
Rated Current	32A
Rated Power	7KW
Gauge	28~12AWG
Strip length	10 - 12mm
Package	Polybag
Application	Pendant lights. Down lights. Spot lights. Ceiling lights and other electrical connections.

Product characteristics

The wiring capacity is large and can be adapted to various wiring requirements.
PA 6.6 material, permanent temperature resistance 105 ° C, not embrittled.
Fast – direct plug-in, error can be pulled out, repeated and reconnected.
Reliable – each contact shrapnel is independent, and different wire diameters are also available, safely shorted.
Easy to install– the end of the solder pin shrinks, tinned solder pins, easy to solder, with cooling channels.

Package include
